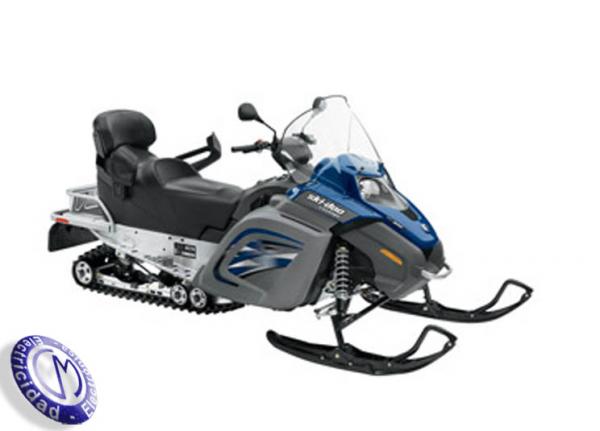

SNOWMOBILE SKIDOO modelo LEGEND,TOURINGV-800

SNOWMOBILE SKIDOO modelo LEGEND,TOURINGV-800
<- paginación ->

Especificaciones técnicas

Specifications

Engine

Engine:
  • V-800
Engine Details:
Liquid-cooled 4-stroke
Cylinders:
2
Displacement:
799.9 cc / 48.8 cu
Bore:
3.6 in / 91 mm
Stroke:
2.4 in / 61.5 mm
Maximum Engine Speed:
7200 RPM
Carburetion:
EFI
Recommended Fuel Type:
Regular unleaded
Fuel:
9 US gal./34 L
Oil Capacity:
  • -1 L
Exhaust System:
Exhaust pipe, muffler

Powertrain

Drive Pulley:
TRA™ IV
Driven Pulley:
LPV VSA
Engagement:
2100 RPM
Brake:
Hydraulic, RT™-Type brake lever

Dimensions

Vehicule Overall Length:
120 in / 3057 mm
Vehicule Overall Width:
44.7 in / 1137 mm
Vehicule Overall Height:
51.2 in / 1300 mm
Dry Weight:
525 lbs. / 239 kg
Ski Stance:
39 in / 991 mm
Ski Overall Lenght:
42 in / 1066 mm
Ski Width:
5.7 in / 145 mm
Track Width:
15 in / 381 mm
Track Length:
136 in / 3456 mm
Track Height:
0.88 in / 22.2 mm

Suspensions

Front Suspension:
RF
Front Shocks:
Motion Control
Rear Suspension:
SC™-136
Rear Shocks:
MC-HPG
Rear Arm Shock:
HPG

Key Features

Platform:
RF
Colour:
Labrador Blue / Smoke
Skis:
Pilot 5.7 dual-runner
Handlebars:
RF
Electric Start:
Standard
Speedometer:
Standard
Windshield:
High
Tachometer:
Standard
Package Highlights:
  • V-800 4-TEC® engine
  • RF platform
  • Pilot 5.7 dual-runner skis
  • Electric start, reverse
  • Extra-high windshield, mirrors
  • Heated passenger handholds
  • Cargo rack
  • Steering cover
  • Motion Control front and rear shocks
  • Speedometer, tachometer
