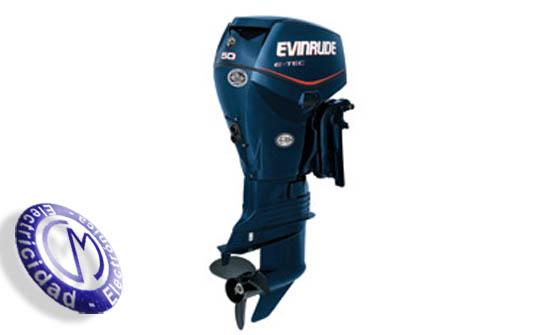

OUTBOARDS EVINRUDE modelo E-TEC50-INLINE-2

OUTBOARDS EVINRUDE modelo E-TEC50-INLINE-2
<- -> paginación

Especificaciones técnicas

Engine:
Inline 2-Cylinder E-TEC
Bore in/mm:
3.600 in / 91 mm
Stroke in/mm:
2.558 in / 66 mm
Displacement cu:
52.7 cui / 863 cc
Starting:
Electric
Trim Method:
Power Trim and Tilt
Propshaft kilowatts (HP):
50 HP (37 kw) @ 5750 RPM
Full Throttle Operating
Range (RPM):
5500-6000 tr/min
Gear Ratio:
2.67:1
Fuel Induction:
E-TEC Direct Fuel Injection w/stratified low RPM combustion mode
Alternator:
Variable Voltage Computer Controlled 75/25 Amp/1100 watt output w/ regulator
Cooling:
Pressure & Water Temperature Controlled
Steering:
Remote or Accessory Tiller
Limited Warranty:
3-Years Non-Declining
Compliance:
CARB 3-STAR / EPA / European Union
Colours:
Blue
Length:
20 in / 508 mm
Dry Weight:
240 lbs / 109 kg
