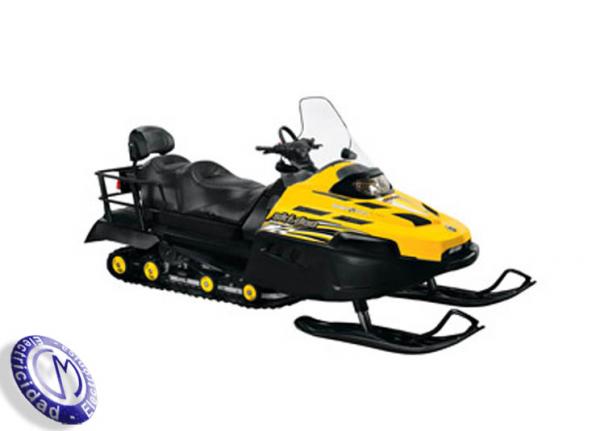

SNOWMOBILE SKIDOO modelo SKANDIC,SWTV-800
SNOWMOBILE SKIDOO modelo SKANDIC,SWTV-800
<- -> paginación

Especificaciones técnicas

Specifications

Engine

Engine:
  • V-800
Engine Details:
Liquid-cooled, 4-stroke
Cylinders:
2
Displacement:
799.9 cc / 48.8 cu
Bore:
3.6 in / 91 mm
Stroke:
2.4 in / 61.5 mm
Maximum Engine Speed:
7250 RPM
Carburetion:
EFI
Recommended Fuel Type:
Regular unleaded
Fuel:
11 US gal./42 L
Oil Capacity:
  • -1 L
Exhaust System:
Exhaust pipe, muffler

Powertrain

Drive Pulley:
TRA™ IV
Driven Pulley:
NDT 6K VSA
Engagement:
2500 RPM
Brake:
Hydraulic

Dimensions

Vehicule Overall Length:
120.9 in / 3070 mm
Vehicule Overall Width:
45.5 in / 1155 mm
Vehicule Overall Height:
53.3 in / 1355 mm
Dry Weight:
717 lbs. / 326 kg
Ski Stance:
35.4 in / 900 mm
Ski Overall Lenght:
43.8 in / 1112 mm
Ski Width:
9.8 in / 250 mm
Track Width:
24 in / 600 mm
Track Length:
156 in / 3968 mm
Track Height:
1.25 in / 31.8 mm

Suspensions

Front Suspension:
LTS
Front Shocks:
Hydraulic
Rear Suspension:
Easy ride XWLS
Rear Shocks:
Hydraulic
Rear Arm Shock:
Hydraulic

Key Features

Platform:
Yeti II
Colour:
Yellow / Black
Skis:
Plastic
Electric Start:
Standard
Speedometer:
Standard
Windshield:
Extra high
Tachometer:
Optional
Package Highlights:
  • 4-TEC® V-800 engines
  • Yeti II platform
  • 24 x 156 x 1.25 in track
  • Synchromesh transmission
  • Mtn. strap, rack, hitch
  • Electric start, mirrors
  • 2-up seat w/backrest, storage
  • Extra high windshield
  • 12V power outlet
