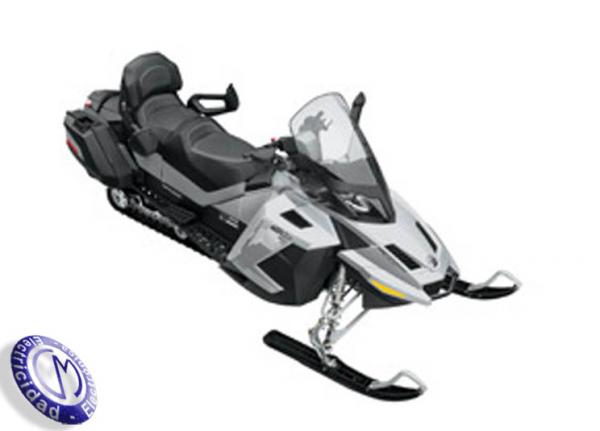

SNOWMOBILE SKIDOO modelo GTX,SE4-TEC125

SNOWMOBILE SKIDOO modelo GTX,SE4-TEC125
<- -> paginación

Especificaciones técnicas

Specifications

Engine

Engine:
  • 1200 4-TEC
Engine Details:
Liquid-cooled, 4-Stroke D.O.H.C., dry sump
Cylinders:
3
Displacement:
1170.7 cc / 46.9 cu
Bore:
3.6 in / 91 mm
Stroke:
2.4 in / 60 mm
Maximum Engine Speed:
7800 RPM
Carburetion:
EFI
Recommended Fuel Type:
Regular unleaded
Fuel:
11 US gal./40 L
Oil Capacity:
  • 4 US gal./3.7 L
Exhaust System:
Single head-pipe, baffle muffler

Powertrain

Drive Pulley:
TRA™ IV
Driven Pulley:
QRS
Engagement:
2800 RPM
Brake:
Brembo hydraulic brake

Dimensions

Vehicule Overall Length:
127 in / 3226 mm
Vehicule Overall Width:
47.9 in / 1217 mm
Vehicule Overall Height:
52.1 in / 1325 mm
Dry Weight:
599 lbs. / 271 kg
Ski Stance:
47 in / 1195 mm
Ski Overall Lenght:
42 in / 1066 mm
Ski Width:
5.7 in / 145 mm
Track Width:
15 in / 381 mm
Track Length:
137 in / 3486 mm
Track Height:
1 in / 25.4 mm

Suspensions

Front Suspension:
Dual A-arm front suspension
Front Shocks:
KAYABA HPG
Rear Suspension:
SC-5
Rear Shocks:
HPG-MC-Air Spring
Rear Arm Shock:
ACS (Air Control Suspension)

Key Features

Platform:
REV-XR
Colour:
Swift Silver
Skis:
Pilot 5.7 SL
Handlebars:
GTX type
Electric Start:
Standard
Windshield:
Extra high
Electric Fuel Gauge:
Standard
Electric Temperature Gauge:
Standard
Package Highlights:
  • ACS (Air Control suspension) adjust-on-the-fly
  • Tilt steering
  • Painted tunnel
  • Hard-top tunnel bag
  • Hard-side lockable saddlebags
  • Swift Silver color
  • NEW 4-TEC® engine choice
  • NEW REV-XR platform
  • NEW REV-XR glossy side panels
  • NEW SilenTrack technology
  • NEW Adjustable passenger handhold
  • NEW Modular seat
  • Temperature gauge
  • Electronic reverse
  • 12V front and rear power outlets
  • NEW Heated seat (passenger and driver)
