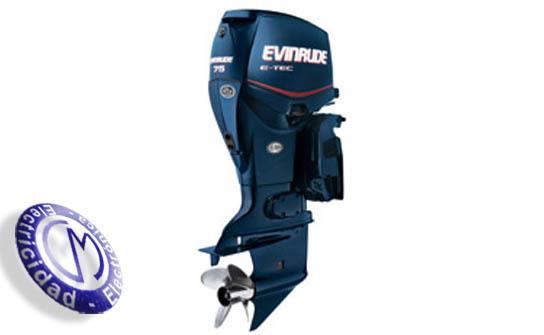

OUTBOARDS EVINRUDE modelo E-TEC75-INLINE-3

OUTBOARDS EVINRUDE modelo E-TEC75-INLINE-3
<- -> paginación

Especificaciones técnicas

Engine:
Inline 3-Cylinder E-TEC
Bore in/mm:
3.600 in / 91 mm
Stroke in/mm:
2.558 in / 66 mm
Displacement cu:
79 cui / 1295 cc
Starting:
Electric
Trim Method:
FasTrakTM Power Trim and Tilt
Propshaft kilowatts (HP):
75 HP (56 kw) @ 5000 RPM
Full Throttle Operating
Range (RPM):
4500-5500 tr/min
Gear Ratio:
2:1
Fuel Induction:
E-TEC Direct Fuel Injection w/stratified low RPM combustion mode
Alternator:
Variable Voltage Computer Controlled 75/25 Amp/1100 watt output w/ regulator
Cooling:
Pressure & Water Temperature Controlled
Steering:
Remote or Accessory Tiller
Limited Warranty:
3-Years Non-Declining
Compliance:
CARB 3-STAR / EPA / European Union
Colours:
Blue
Length:
20 in / 508 mm
Dry Weight:
320 lbs / 145 kg
