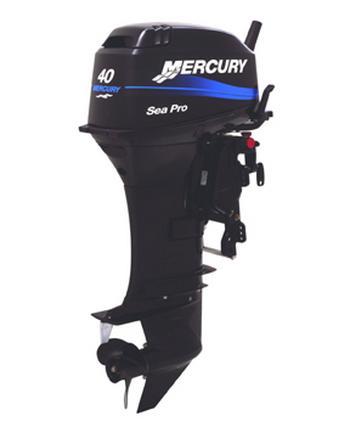

OUTBOARDS MERCURY modelo 40M SEA PRO 40 HP

OUTBOARDS MERCURY modelo 40M SEA PRO 40 HP
<- -> paginación

Especificaciones técnicas

DATOS DEL MOTOR
Aņo: 2009
Marca: Mercury
Modelo: 40M Sea Pro
Cilindros: 2
Combustible: Nafta
HP: 40
Cilindrada: 645
Arranque: Manual
Power Trim: No
Control Remoto: No
Pata: Corta 15 ' '
Peso: 78 Kg



GENERAL
Propshaft Rated Horsepower 40 HP (29.8kw)
Max RPM at Full Throttle 5000 - 5500
Cylinders 2
Displacement 39.3 cu in. (645cc)
Bore/Stroke 2.99 in. x 2.80 in. (76mm x 71mm)
Cooling System Water cooled with thermostat and pressure controlled
Ignition Modular CDI
Starting Manual
Gear Ratio 2.00.1
Gear Shift F-N-R
Steering Tiller
Alternator System 18 amp (254 watt)
Trim Positions Gas assist
Fuel Tank Separate 6.6 US gal (25 litres)
Weight 78kg
Propeller Drive Splined rubber hub
Recommended Boat Transom Height Short 15 " (381mm)
Propeller Option See Dealer
Prop Selection (Pitch) 8 "-19 "
Induction System Loop-charged (1 carb)
Oil Injection  Standard
Counter Rotation N/A
SmartCraft Capabilities N/A
