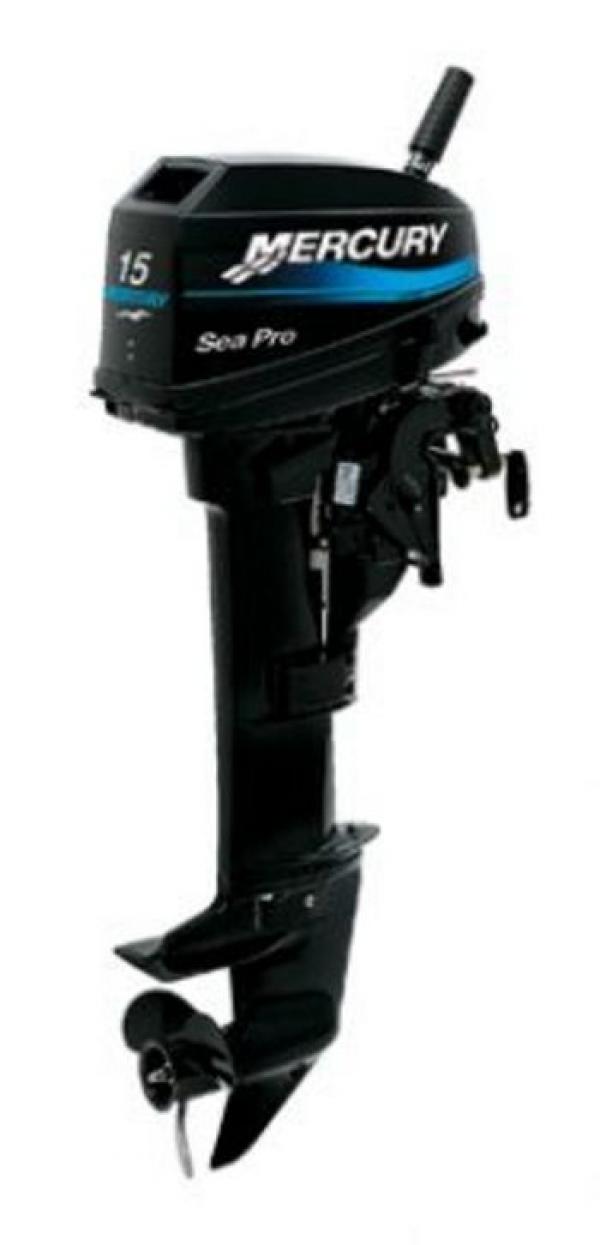

OUTBOARDS MERCURY modelo 15M SEA PRO 2 TIEMPOS 15 HP

OUTBOARDS MERCURY modelo 15M SEA PRO 2 TIEMPOS 15 HP
<- -> paginación

Especificaciones técnicas

DATOS DEL MOTOR
Año: 2009
Marca: Mercury
Modelo: 15M Sea Pro 2 TIEMPOS
Cilindros: 2
Combustible: Nafta
HP: 15
Cilindrada: 262
Arranque: Manual
Power Trim: No
Control Remoto: No
Pata: Larga 20 ' '
Peso: 36 Kg


GENERAL
Propshaft Rated Horsepower 15 HP (11.2kw)
Max RPM at Full Throttle 5000 - 6000
Cylinders 2
Displacement 16 cu in. (262cc)
Bore/Stroke 2.38 in. x 1.80 in. (60mm x 46mm)
Cooling System Water cooled
Ignition Modular CDI
Starting Manual
Gear Ratio 2.00.1
Gear Shift F-N-R
Steering Tiller
Alternator System 6 amp(76watt)
Trim Positions 3
Fuel Tank Separate 6.6 US gal (25 litres)
Weight 75 lb (34kg)
Propeller Drive Splined rubber hub
Recommended Boat Transom Height Short 15 " (381mm) Long 20 " (508mm)
Propeller Option See Dealer
Prop Selection (Pitch) 6.5 "-10.5 "
Induction System Cross-flow (1 carb)
Oil Injection Mix
Counter Rotation N/A
